1. Redevelopment of the user logging facility to
allow subsequent analysis of the data to be more automated -
Previous analysis of the user log files were performed manually so was
both time-consuming and laborious. To overcome this, the structure of
the log files required to be changed and more information had to be
recorded into the log file. To perform the automatic parsing and
analysis of the log files, spreadsheet macros were written that could
assign design activity categories to each user action. This allowed the
total time spent on each type of design task to be calculated and
automatically plotted. In addition, repeating patterns of activity could
be identified to help determine what is the best practice for particular
design tasks.
2. Move to a more powerful VR hardware platform to
give a more immersive experience - This involved moving from an SGI
Octane2 workstation to an SGI Onyx4 visualisation system to increase the
computing and graphical power. This will allow a more realistic VR
environment to be developed and more functionality can be incorporated
into the system without overloading the hardware. This added

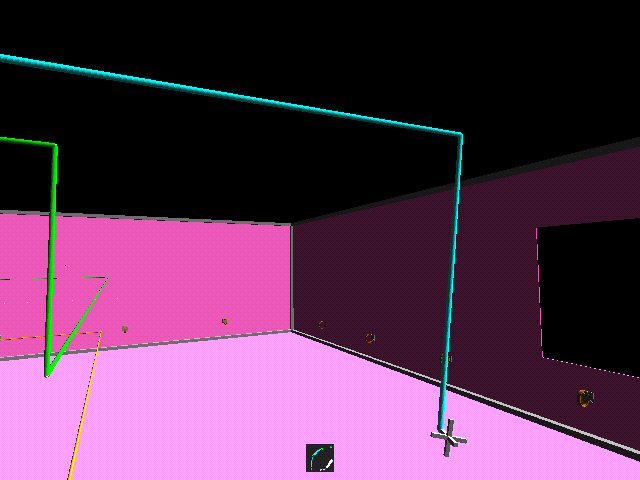

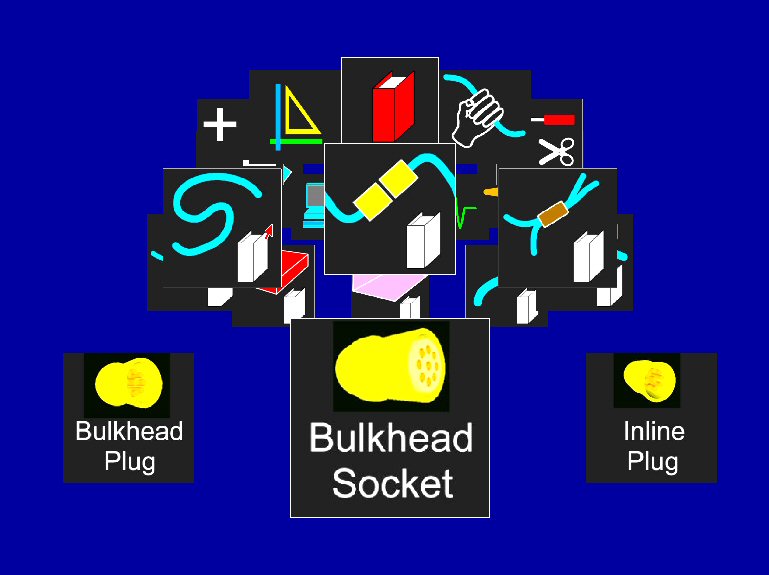

functionality includes improved navigation tools and additonal design

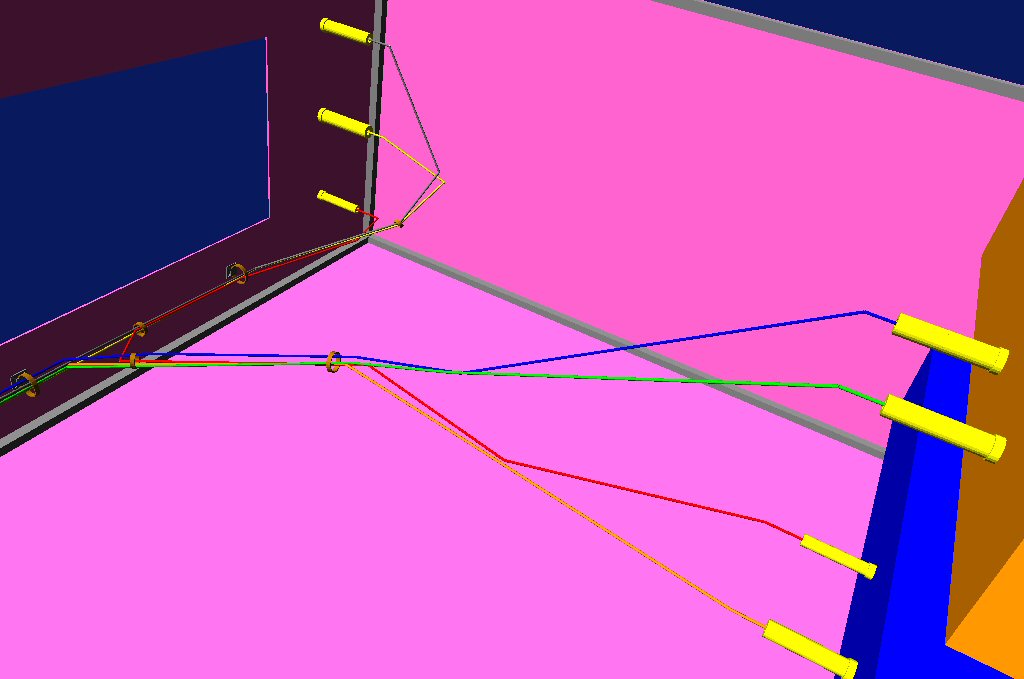

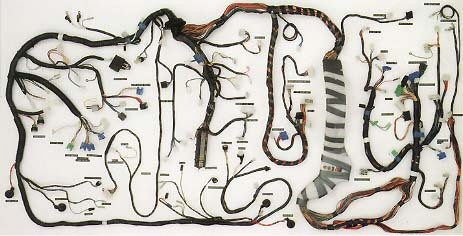

tools to create more realistic cable harnesses.
3. Perform user trials to obtain feedback on the VR
design system and to analyse the generated log files - A trial
involving 10 users were carried out and involved the participants
performing several design tasks and being logged unobtrusively in the
background. To gain further insight on the usability of the system, the
participants were also asked for feedback using a questionnaire.
4. Incorporate the user logging tools into the
Grand Challenge project
- Having applied the user logging functionality in a 3D immersive design
environment, the next step was to apply the same techniques to a
traditional 2D CAD-like design environment. Due to the difficulty in
obtaining access to the source code of commercial CAD packages, a design
application called BAMZOOKi was selected as the platform to test the
logging tools. This package is aimed at children and is used to
design and test mechanical creatures that have to perform physical
tasks.
5. Extraction and formalisation of design
knowledge - By using a spreadsheet macro to parse the log files,
IDEF0 diagrams can be automatically plotted to allow the design
processes to be visualised and formalised. This formalised design
knowledge can then be utilised in an information push system, which is
integrated into the design environment, to aid users who are carrying
out a similar design task. By monitoring the users' actions continuously
in real-time, any repeating patterns that matches known patterns in a
database will allow the system to identify what task the user is
carrying out and relevant information can displayed to the user if
assistance is required.
|
